YUKEN Series Control Valve HCG-03-H1-22

Model:

HCG-03-H1-22

Max Pressure:

21MPa

Flow Capacity:

50L/min

Weight:

4.8KG

Description:

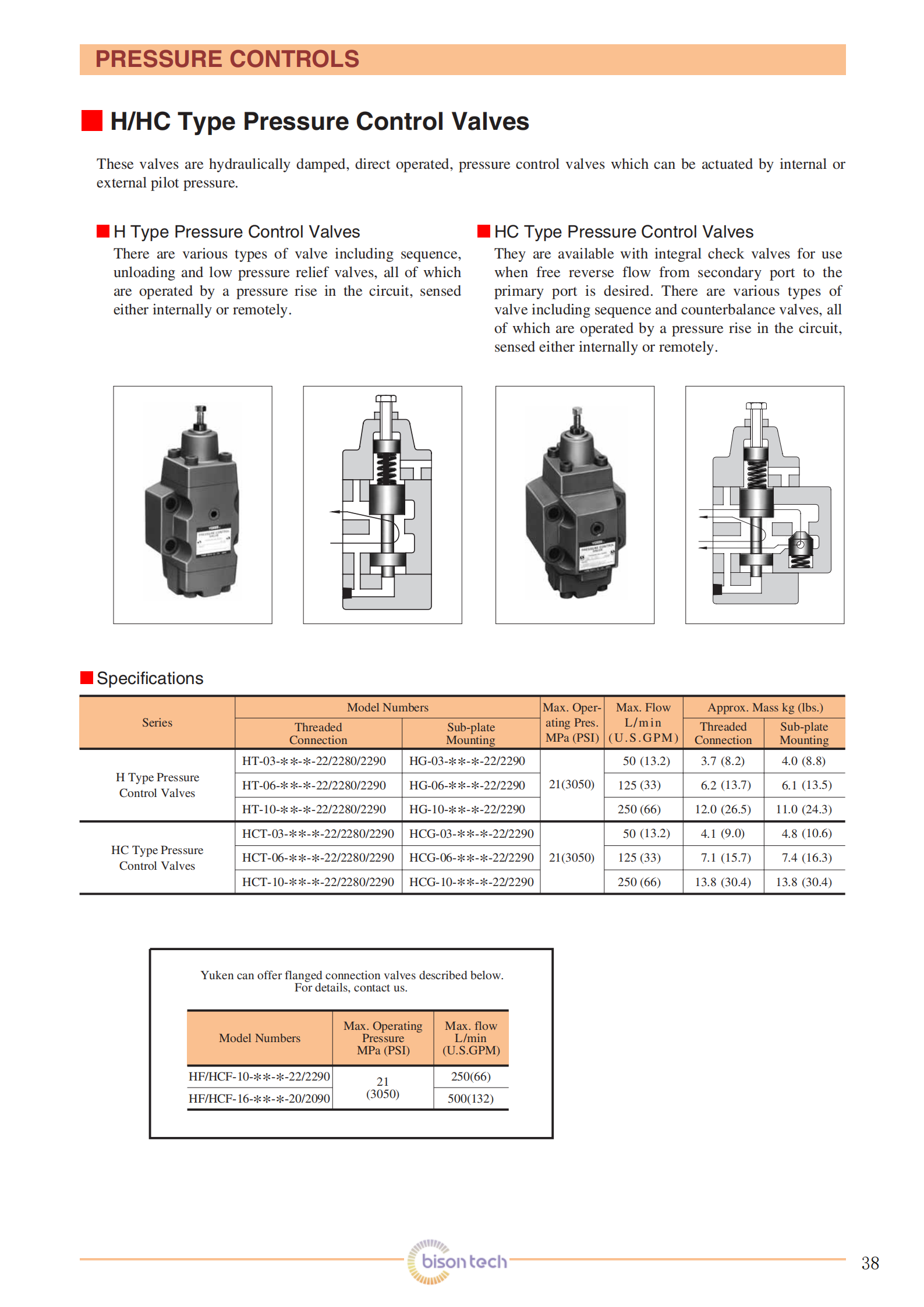

YUKEN Series Control Valve HCG-03-H1-22H/HC Type Pressure Control Valves These valves are hydraulically damped, direct operated, pressure control valves which can be actuated by internal or external pilot pressure.
