YUKEN Series Pressure Control Valve HG-06-H1-22

Model:

HG-06-H1-22

Max Pressure:

21MPa

Flow Capacity:

125L/min

Weight:

6.1KG

Description:

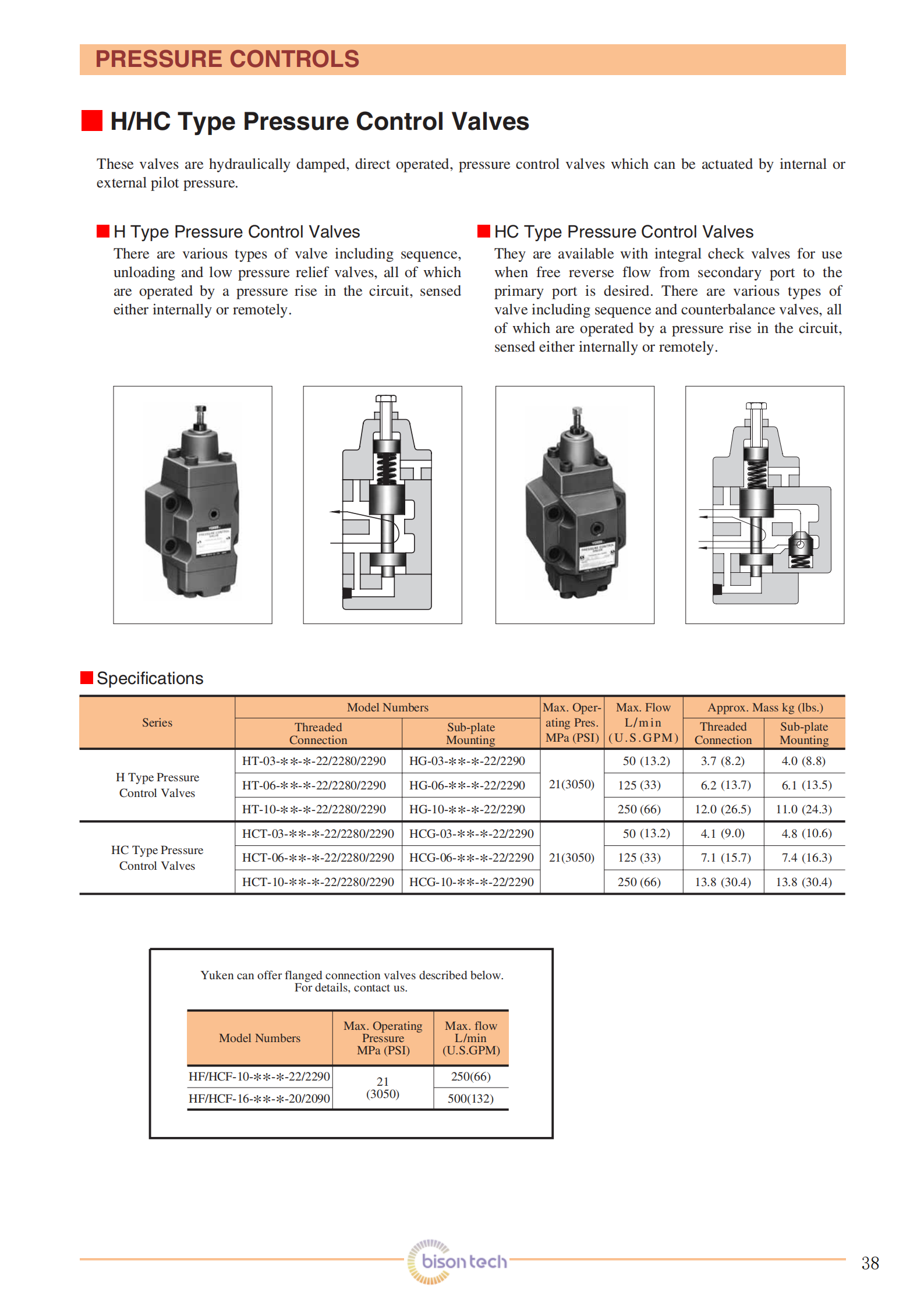

YUKEN Series Pressure Control Valve HG-06-H1-22H/HC Type Pressure Control ValvesThese valves are hydraulically damped, direct operated, pressure control valves which can be actuated by internal or external pilot pressure.
