YUKEN series 1/8 Modular Valves Reducing Modular Valves MRP-01 MRA-01 MRB-01-B/C/H-30

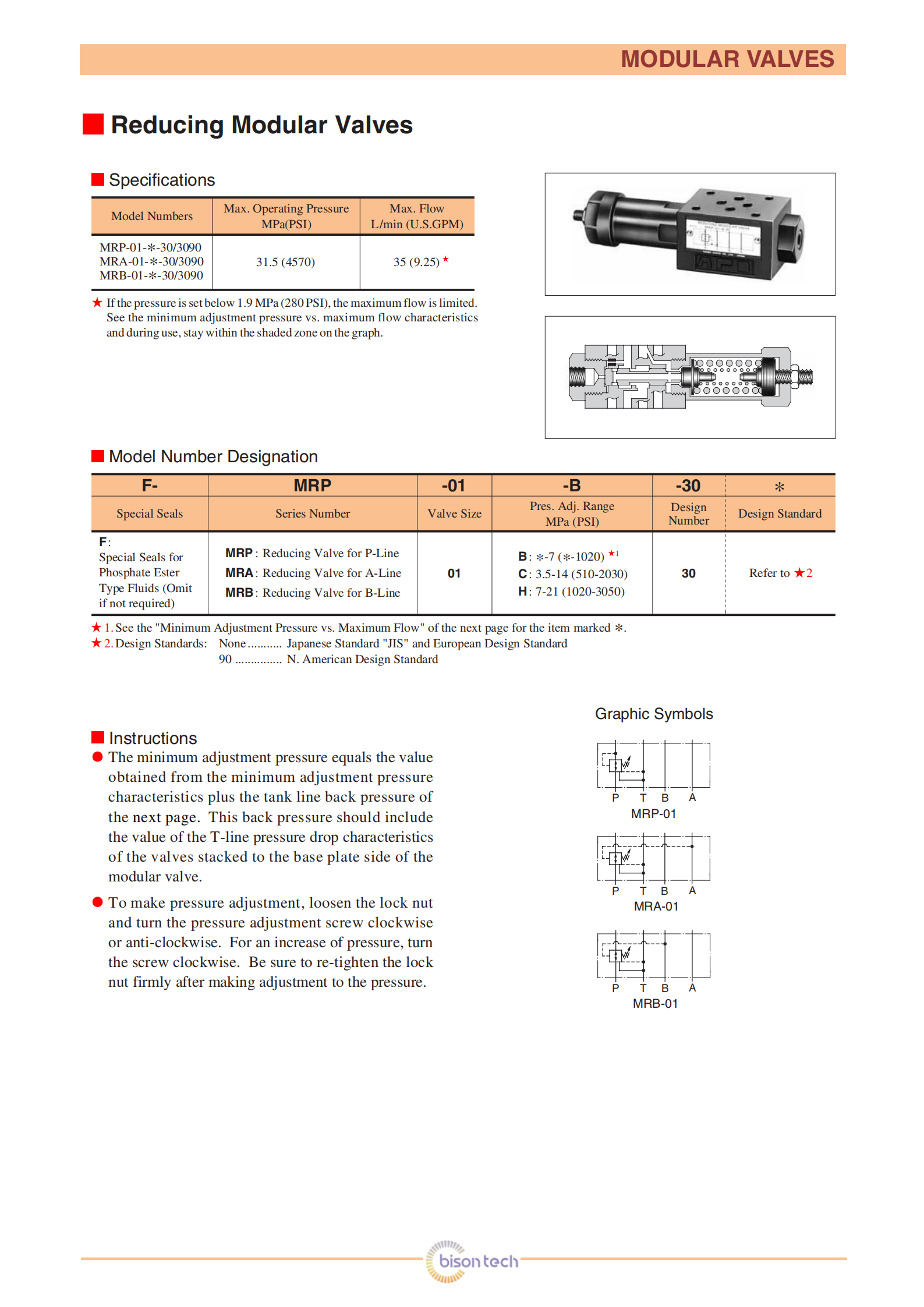

The minimum adjustment pressure equals the value

obtained from the minimum adjustment pressure

characteristics plus the tank line back pressure of

the next page. This back pressure should include

the value of the T-line pressure drop characteristics

of the valves stacked to the base plate side of the

modular valve.

If the pressure is set below 1.9 MPa (280 PSI), the maximum flow is limited.

See the minimum adjustment pressure vs. maximum flow characteristics

and during use, stay within the shaded zone on the graph.

To make pressure adjustment, loosen the lock nut

and turn the pressure adjustment screw clockwise

or anti-clockwise. For an increase of pressure, turn

the screw clockwise. Be sure to re-tighten the lock

nut firmly after making adjustment to the pressure.
