Product details description

YUKEN series H/HC Type Pressure Control Valves HT-03/06/10 HCT-03/06/10 HG-03/06/10  HCG-03/06/10

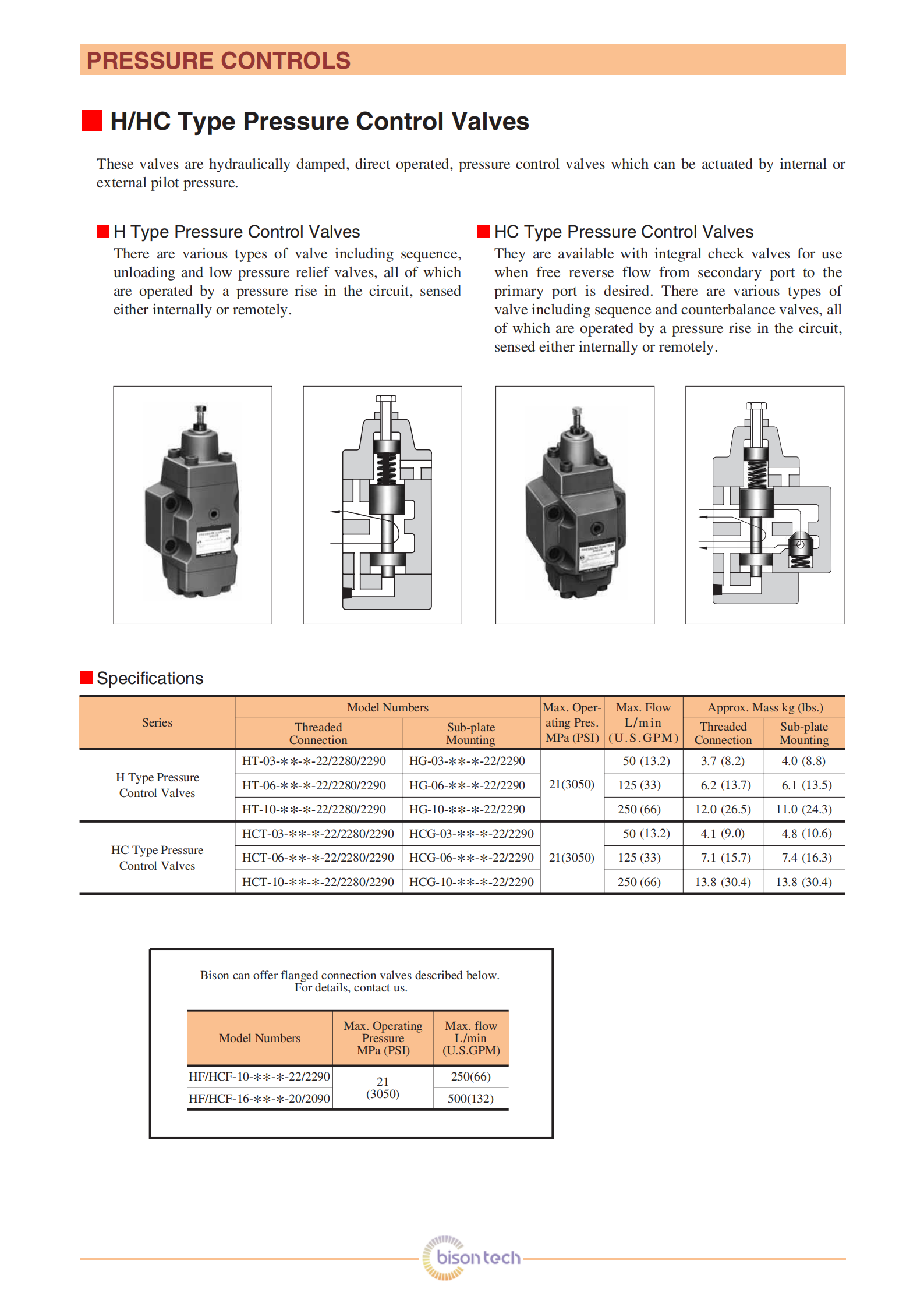

These valves are hydraulically damped, direct operated, pressure control valves which can be actuated by internal or
external pilot pressure.

H Type Pressure Control Valves
There are various types of valve including sequence,
unloading and low pressure relief valves, all of which
are operated by a pressure rise in the circuit, sensed
either internally or remotely.


HC Type Pressure Control Valves
They are available with integral check valves for use
when free reverse flow from secondary port to the
primary port is desired. There are various types of
valve including sequence and counterbalance valves, all
of which are operated by a pressure rise in the circuit,
sensed either internally or remotely.
